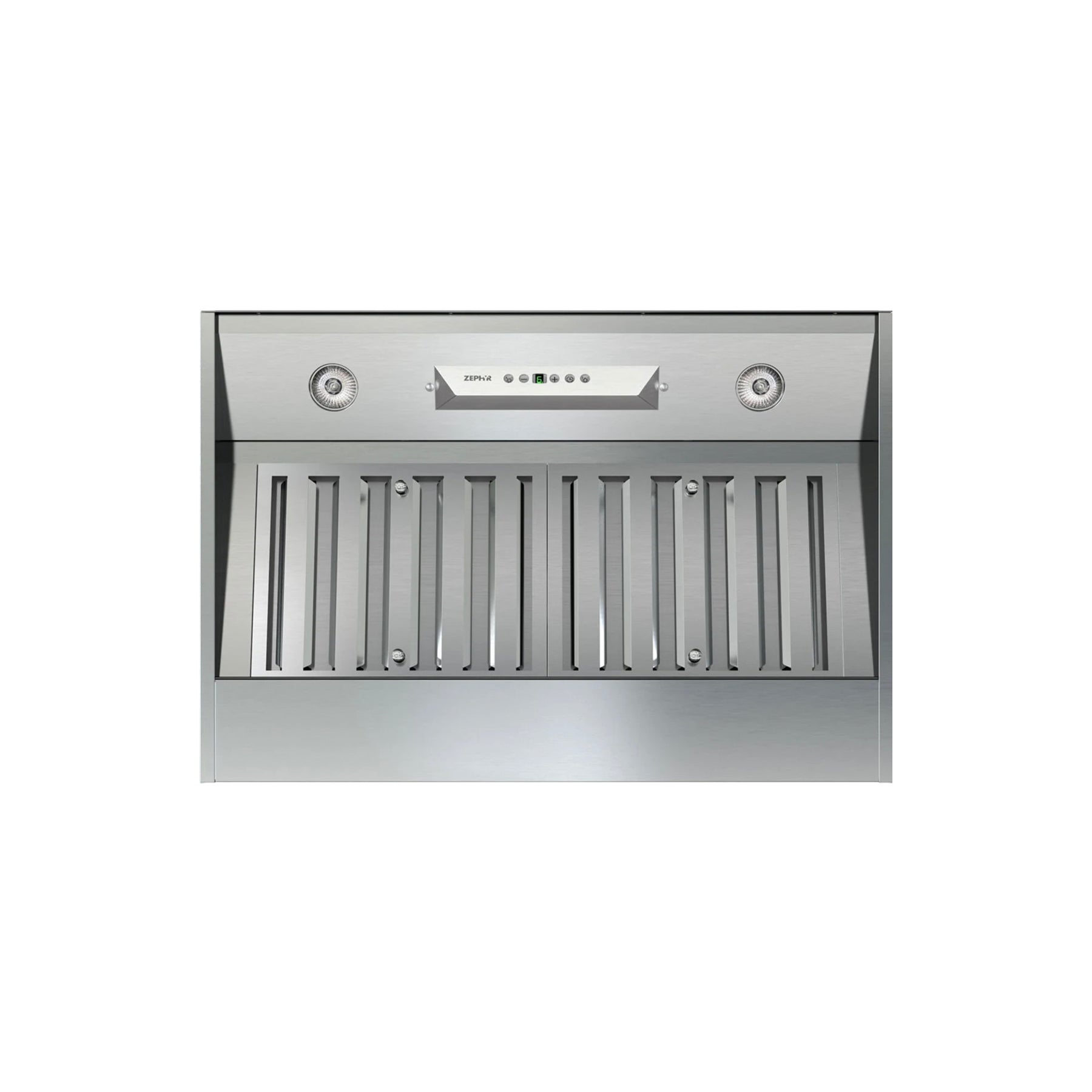

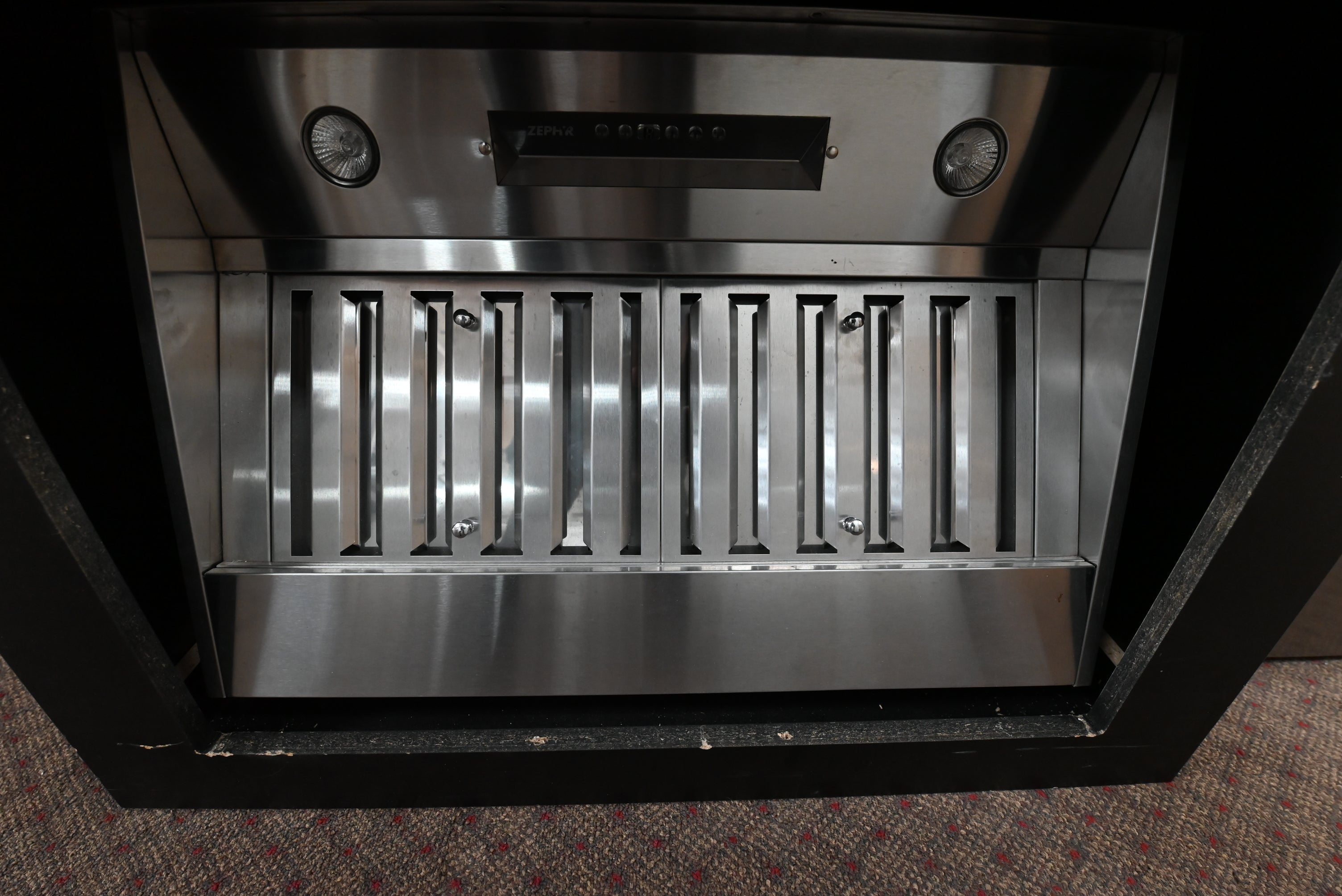

Zephyr AK9228AS 30" Stainless Steel Hood Insert

600 CFM Internal Blower, Airflow Control Technology™ (ACT™) & Professional Pro-Baffle Filtration: Zephyr 30" Custom Cabinet One-Piece Liner Insert

Achieve elite-tier capture performance over your high-output range top while preserving the bespoke architecture of your kitchen's custom cabinetry enclosure with the Zephyr Core Collection Monsoon I Built-In Range Hood Insert (AK9228AS). Specially curated for custom residential architects, upscale interior designers, and estate finish contractors sourcing high-performance ventilation without standard factory distribution delays, this premium one-piece liner insert cleanly integrates beneath custom wood, plaster, or masonry hoods. Unlike generic, low-volume liners that allow airborne grease patterns to degrade surrounding custom woodwork and stain drywall, the AK9228AS features industrial-grade, hand-finished stainless steel framing designed to isolate moisture and high-heat convective plumes. Driven by a quiet, high-capacity internal fan network and featuring an ADA-compliant wireless controller, this luxury insert brings clean air architectural excellence directly to your culinary theater.

Master-Tier Features & Zephyr Clean-Air Engineering

Tailored for high-heat pan searing, heavy wok routines, and premium property renovations that require flexible local building code compliance paired with smooth, custom enclosure boundaries, this 30" Zephyr insert features:

• Airflow Control Technology™ (ACT™): An industry-exclusive feature that gives your installer the ability to set and limit the maximum blower threshold to 590, 390, or 290 CFM during installation, effortlessly satisfying strict local municipal make-up air building codes without compromising static extraction pull.
• 600 CFM High-Velocity Internal Blower: Operates on a highly optimized centrifugal platform that delivers quick smoke evacuation across 6 distinct fan speeds, allowing you to balance whisper-quiet daily simmering with high-capacity turbo ventilation.
• Stainless Steel Pro-Baffle Filters: Outfitted with heavy-gauge, commercial-angled baffle arrays that trap cooking grease vapor with maximum airflow velocity. Features an integrated, easily removable stainless steel grease tray, and the entire filter bank is completely dishwasher-safe.
• CleanAir Function Automation: An automated indoor air-quality cycle that powers the hood blower on at low speed for 10 minutes every 4 hours, consistently refreshing kitchen ambient air and pulling out secondary home odors entirely on autopilot.
• Dual-Level Halogen Theater Lighting: Houses two forward-positioned 35W halogen lamps that cast clear, bright task illumination over your front and rear burners, featuring two selectable brightness levels to set the perfect mood for evening hosting.
• ADA-Compliant RF Wireless Remote Control: Includes a slim, handheld wireless radio-frequency remote control that allows you to activate fan speeds, set timers, and toggle lighting arrays without ever having to lean over hot, active cooktop surfaces.
• Auto Delay-Off Smart Timer: Programmable touch interface that keeps the internal blower running for an extra 10 minutes after you finish cooking to clear out lingering microscopic vapors, then automatically shuts the entire unit down to conserve power.

Technical Specifications

• Brand / Maker: Zephyr Ventilation (A Globally Recognized Pioneer in Luxury High-Design Home Ventilation Ecosystems)
• Collection Profile: Zephyr Core Series / Monsoon I High-Capacity One-Piece Liner Portfolio
• Model Sizing Identifier: AK9228AS (30-Inch Nominal Scale | Actual Chassis Base Measures 28 3/8" Wide)
• Ventilation Blower Output: 6-Speed Internal Centrifugal Motor Adjustable from 200 CFM up to 600 CFM Max Output
• Code Compliance System: Built-In ACT™ Calibration (Enables field calibration down to 590, 390, or 290 maximum CFM ceilings)
• Noise Performance Profile: Ultra-Quiet Baseline Operation from 1.2 Sones (Speed 1) up to 6.0 Sones (Speed 6 Turbo)
• Filtration Shield Matrix: 2 Commercial Pro-Baffle Stainless Steel Filters with Removable Rear Grease Catch Tray (Dishwasher Safe)
• Control System Interface: Under-Rim Centered Electronic Touch-Capacitive Buttons with Digital Display Speed Readout
• Remote Control Accessibility: ADA-Compliant RF (Radio Frequency) Wireless Handheld Remote Controller Included
• Lighting Infrastructure Matrix: 2 Dual-Level 35W GU10 Halogen Bulbs (Provides High and Low Ambient Glows)
• Exhaust Venting Configuration: Multi-Directional Adaptability (Supports 8" Round Vertical Top Venting OR 3 1/4" x 10" Rectangular/8" Round Rear Horizontal Exhaust Ducting)
• Overall Unit Body Width: 28 3/8 Inches (Engineered to drop seamlessly inside a standard 30" custom wood hood liner frame)
• Overall Unit Body Depth: 19 1/4 Inches Deep Footprint (Ensures exceptional capture zone depth over heavy gas burners)
• Overall Unit Body Height: 12 Inches High Rigid Inner Shell Enclosure
• Required Cabinet Cutout Chamber: ~28 1/2" Wide Minimum x 19 1/2" Deep Base Opening Cutout Space
• Recommended Mounting Elevation: 26 Inches Minimum to 36 Inches Maximum clearance space from range cooktop grate line
• Electrical Service Demands: 120 Volts | 60 Hz | Max Power Draw of 480 Watts at 3.9 Amps (Runs on a standard low-amp grounded circuit)

The Zephyr Core Collection Monsoon I Built-In Range Hood Insert is the absolute definitive choice for the modern kitchen architect, premium custom home builder, or luxury property renovator who demands advanced 600 CFM smoke extraction, code-compliant Airflow Control Technology™, automated CleanAir room cycles, and completely hidden custom mantle liner integration. Its premier combination of a highly tunable 6-speed internal fan drive, dual-level halogen lighting, dishwasher-safe pro baffle filtration, and an ADA-compliant wireless remote controller ensures your surrounding custom cabinetry, estate layout flow, and high-end cooking environment remain effortlessly clear and flawlessly executed.

The Reality of Trim & Molding

The molding and trim shown in our listing photos are rarely fully reclaimable. Because salvaging is a delicate process, you should expect to receive less than what is pictured.

Most retrofits will require you to source additional matching material to complete your project. Additionally, salvaged trim is not "plug-and-play"—plan on repairing, patching, and repainting these pieces to get them installation-ready. We'd rather you prepare for a project than be surprised by a shortage on delivery day.

Most wall finishes or paneling surrounding the cabinetry is not included. If you are interested or expecting a certain example ask your sales associate.

The Reality of Countertops

Countertops shown in our listings are provided as a complimentary inclusion only and are not guaranteed as part of the sale. Due to the high risk of cracking or breaking during disassembly and transport, countertops may not be available or usable at the time of delivery.

Please note that no claims, credits, or refunds will be issued if countertops are damaged or unavailable. Additionally, backsplash tile, wall stone, and related materials are never included in the purchase price. We strongly recommend planning your project with new countertops in mind; if the originals arrive intact, consider it a win.

The Reality of Cabinet Cut-outs

Please be aware that both showroom and pre-owned cabinetry will have pre-existing cut-outs. These openings for electrical, plumbing, and gas connections are commonly found on the backs, sides, and toe kicks of the units.

These cut-outs are a standard part of any previously installed kitchen and should be expected. Because every home's utility layout is different, you should plan for additional modifications or patching to accommodate your specific plumbing and electrical needs during re-installation.

The Reality of Painted Cabinetry

If a kitchen was custom-painted on-site, you must plan for a full repaint. Because these kitchens were painted over the joints after installation, the paint film is broken during the disassembly process. To achieve a finished look, these cabinets must be repainted in place once re-installed, exactly as they were during the original installation.

For all other pre-owned kitchens, please expect that touch-up painting and color matching will be required. We recommend budgeting for these finishing touches to ensure a seamless result in your new space.

The Reality of Appliance Accessories & Trim Kits

Manufacturer accessories, specialized mounting hardware, and decorative trim kits shown in listing photos are not guaranteed to be included. While these components are often part of a showroom display, they are frequently fitted to that specific installation and may not be available once the unit is removed.

Additionally, internal appliance accessories—such as milk containers, water pitchers, and specialized shelving—are often not included in the sale. You should plan to source these specific manufacturer parts or trim kits to fit your new layout. If you have questions about whether a specific component is included, please reach out to us before purchasing.

The Reality of Kitchen Package Appliances

Pre-owned appliances included in kitchen sets are maintained only to the previous homeowner's standards. These products are sold based on the homeowner's representation of condition; Aurora does not independently test these units. You should budget for a professional service call upon installation, as repairs or maintenance may be necessary. Showroom displays may also require service calls to ensure they are fully operational in a home setting. All appliances in these sets are discounted significantly to accommodate these potential service requirements.

The Reality of Stand-Alone Appliances

Warranties are only included on stand-alone products explicitly labeled as "Certified." For all other stand-alone units, Aurora offers a 30-day functional guarantee should the product require service or repair.

Please note that these products are sold based on our vendor's representation of condition. Aurora does not independently test these units. We recommend all customers plan for a professional inspection and service to ensure the appliance meets their needs.

The Reality of Kitchen Configuration & Fit

All kitchen components are sold strictly "as-is" regarding their configuration and fit. Please be aware that in showroom displays, components like sinks, cooktops, and appliances may be fitted into custom-cut openings that do not follow standard residential sizing.

It is the buyer's responsibility to verify that all components—including sinks and integrated appliances—properly fit the cabinetry provided. Aurora does not guarantee that showroom configurations are compatible with standard plumbing or electrical requirements. You should expect to make modifications, cabinet adjustments, or source new components to ensure a proper fit in your specific installation.
