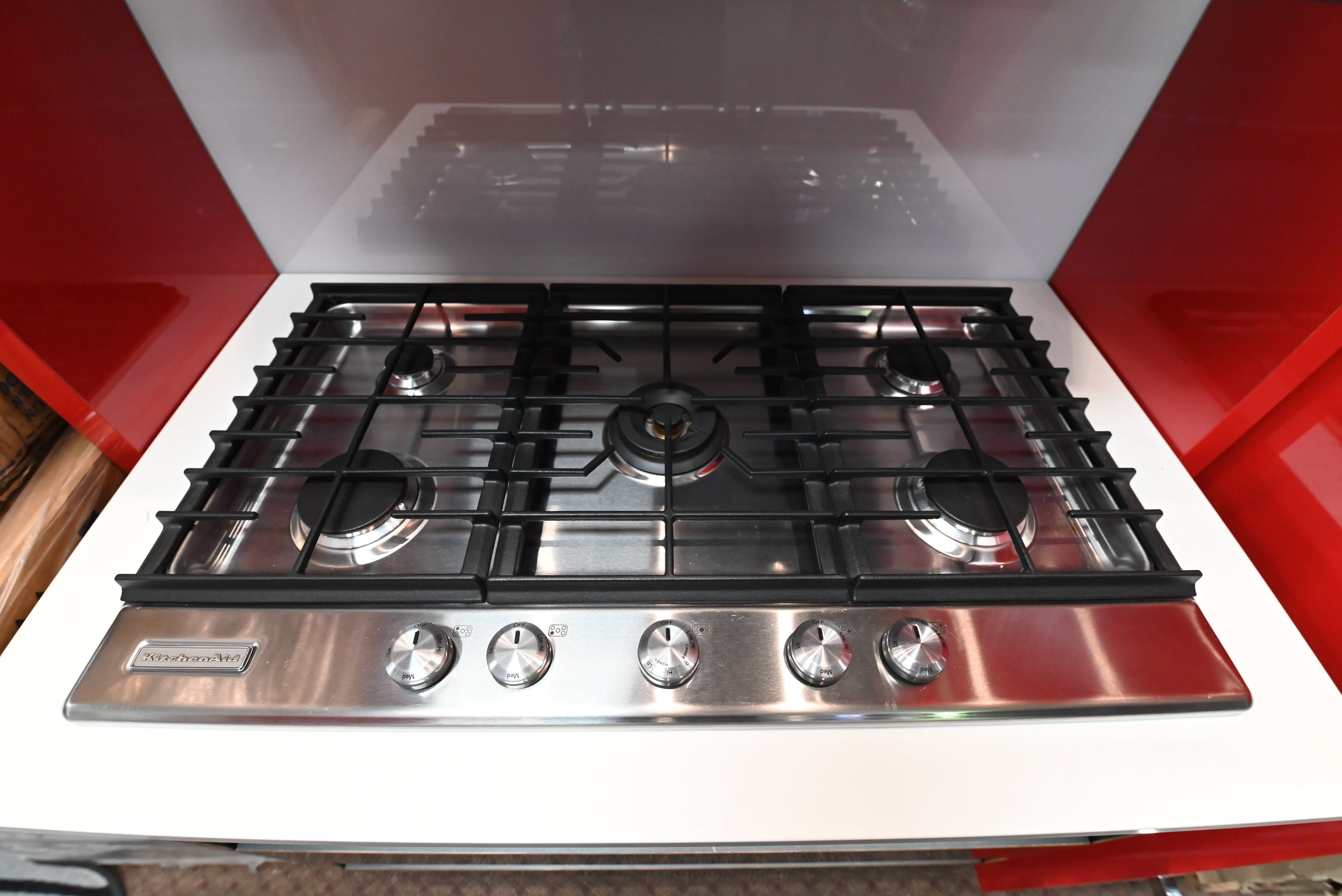

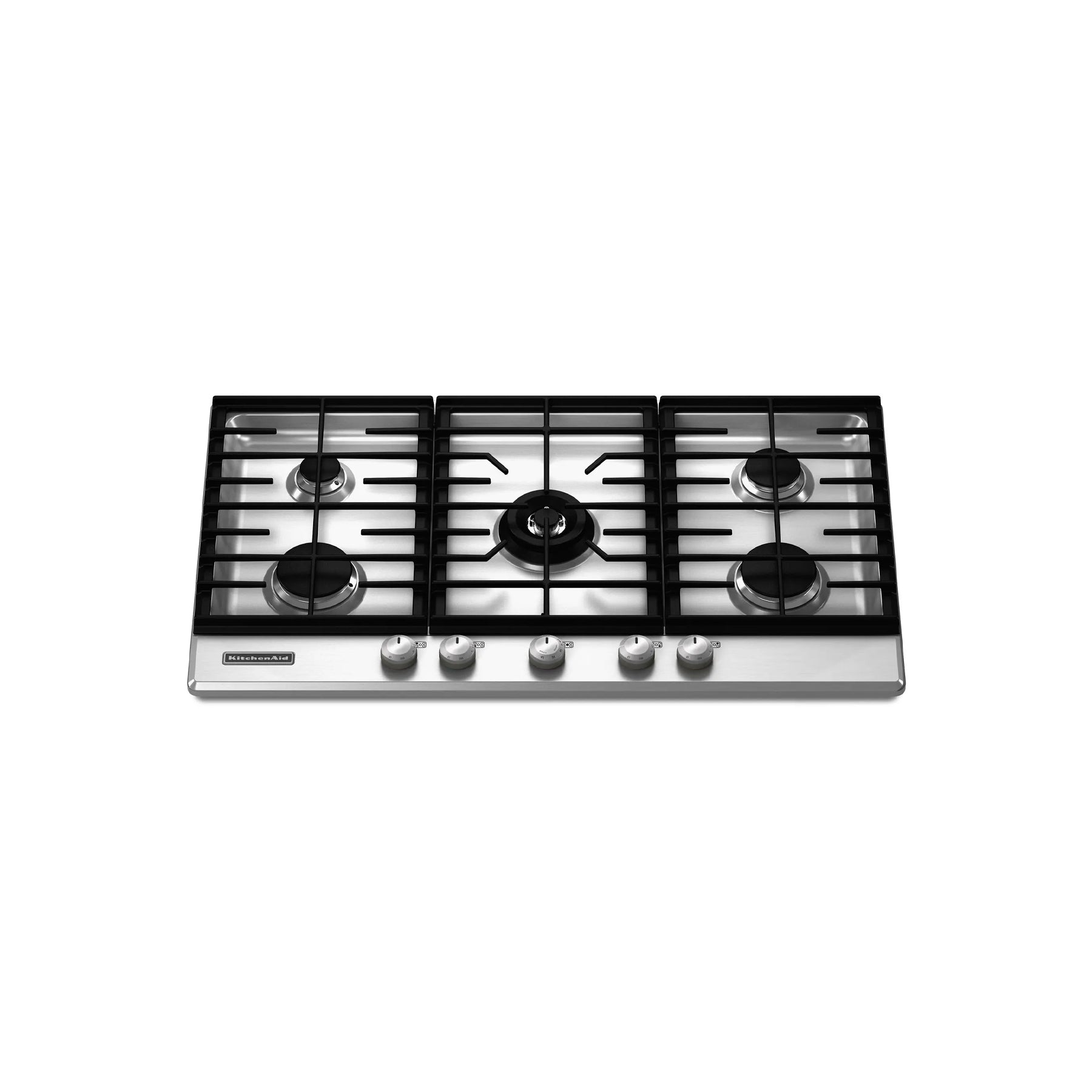

KitchenAid KFGS366VSS 36" Stainless Steel Gas Cooktop

20,000 BTU Professional Dual-Ring Torch Burner, Deep-Recessed Stainless Basin, & Full-Width Continuous Cast-Iron Grates: High-Output 36-Inch Architect-Series Masterpiece

Anchor your high-end chef's island, introduce true restaurant-caliber performance, and maximize multiple wide-pan searing zones with the expansive real estate of the KitchenAid 36" Architect Series II 5-Burner Gas Cooktop (Model KFGS366VSS). Acquired from a pristine luxury estate decommissioning and fully verified by our intake team, this premier 36-inch cooking surface features an ultra-powerful 20,000 BTU professional dual-ring burner centered perfectly to master massive woks, commercial stockpots, and searing cast-iron skillets. Framed in heavy brushed stainless steel with clean laser-etched graphics and weighted metallic dials along the front apron, this unit utilizes an extra-deep recessed basin. This specialized architecture effortlessly catches large run-over boil liquid while dropping the cooktop profile closer to the counter line for an integrated, modern look.

Master-Tier Features & Technical Performance Highlights

Engineered to support complex, multi-course culinary hosting while maintaining precise low temperatures for delicate baking sauces, this premium KitchenAid 36-inch gas cooktop features:

• Expansive 36" Professional Culinary Footprint: Spreads 5 high-efficiency sealed gas burners across a wide, continuous layout, giving you plenty of clearance to run extra-large pans side-by-side without crowding.
• 20,000 BTU Commercial Dual-Ring Burner: Features a specialized dual-flame ring system that can blast intense heat for quick boils or drop down instantly to a gentle, low-heat setting.
• Deep-Recessed Stainless Steel Spill Basin: Deeply stamped single-piece stainless base designed to hold severe overflows, making it quick and easy to wipe clean after heavy meal prep.
• Full-Width Continuous Matte Cast-Iron Grates: Heavy, interlocking, professional-grade iron grates form a flat surface across the unit, letting you slide heavy cookware from burner to burner safely.
• Dedicated 6,000 BTU Even-Heat™ Simmer Burner: Equipped with an internal flame diffuser plate that spreads low heat evenly across pan bases, preventing hot spots and scorching when reducing delicate sauces.
• Front-Apron Architect Series Metal Controls: Outfitted with solid, heavy-gauge turn dials located out front away from hot pans, ensuring a premium tactile feel and accurate flame control.

Complete System Breakdown & Technical Specifications

• Appliance Type Archetype: Drop-In Gas-on-Stainless Cooktop
• Brand & Design Line: KitchenAid Architect Series II
• Model Configuration: KFGS366VSS (Brushed Stainless Steel Base / Central Knobs)
• Total Heating Elements: 5 Sealed Gas Burners
• Center Power Burner: Professional Dual-Ring Flame Burner (20,000 BTU)
• Left Front High-Output Burner: 12,000 BTU Rapid Heat Burner
• Right Front Standard Burner: 9,500 BTU Medium Output Burner
• Left Rear Specialized Burner: 6,000 BTU Even-Heat™ Simmer Burner
• Right Rear Standard Burner: 9,500 BTU Medium Output Burner
• Grate Configuration Array: 3 Full-Width Heavy Interlocking Cast-Iron Grates
• Ignition System: Automatic Electronic Re-ignition (Flames instantly relight if blown out by kitchen drafts)
• Control Architecture: Weighted Infinite-Turn Metal Mechanical Knobs (Front-Center Apron Position)
• Fuel Source Adaptability: Factory configured for Natural Gas (Includes Liquid Propane LP Conversion Jet Kit)
• Overall Unit Outer Width: 36 Inches
• Overall Unit Outer Depth: 21 Inches
• Overall Unit Chassis Height: 3 5/8 Inches
• Required Counter Cutout Space: 35 3/16" Width | 19 13/16" Depth (Minimum Clearance)
• Oven Under-Mount Compatibility: Fully approved to install above KitchenAid KOSE500, KOES530, and KOSE900 series single 30-inch wall ovens
• Electrical Supply Demands: Standard 120-Volt / 60Hz Alternating Current (For electronic spark ignition)

The KitchenAid KFGS366VSS 36" Built-In Gas Cooktop is the absolute definitive choice for the modern kitchen architect, premium custom home builder, or luxury property developer who demands an expansive 36-inch footprint, an ultra-high 20,000 BTU torch burner, and front-apron metal controls. Its premier combination of continuous cast-iron grates, an extra-deep spill-containment basin, and classic Architect Series styling ensures your custom island configurations, main cooking lines, and demanding daily hosting remain effortlessly organized and flawlessly executed.

The Reality of Trim & Molding

The molding and trim shown in our listing photos are rarely fully reclaimable. Because salvaging is a delicate process, you should expect to receive less than what is pictured.

Most retrofits will require you to source additional matching material to complete your project. Additionally, salvaged trim is not "plug-and-play"—plan on repairing, patching, and repainting these pieces to get them installation-ready. We'd rather you prepare for a project than be surprised by a shortage on delivery day.

Most wall finishes or paneling surrounding the cabinetry is not included. If you are interested or expecting a certain example ask your sales associate.

The Reality of Countertops

Countertops shown in our listings are provided as a complimentary inclusion only and are not guaranteed as part of the sale. Due to the high risk of cracking or breaking during disassembly and transport, countertops may not be available or usable at the time of delivery.

Please note that no claims, credits, or refunds will be issued if countertops are damaged or unavailable. Additionally, backsplash tile, wall stone, and related materials are never included in the purchase price. We strongly recommend planning your project with new countertops in mind; if the originals arrive intact, consider it a win.

The Reality of Cabinet Cut-outs

Please be aware that both showroom and pre-owned cabinetry will have pre-existing cut-outs. These openings for electrical, plumbing, and gas connections are commonly found on the backs, sides, and toe kicks of the units.

These cut-outs are a standard part of any previously installed kitchen and should be expected. Because every home's utility layout is different, you should plan for additional modifications or patching to accommodate your specific plumbing and electrical needs during re-installation.

The Reality of Painted Cabinetry

If a kitchen was custom-painted on-site, you must plan for a full repaint. Because these kitchens were painted over the joints after installation, the paint film is broken during the disassembly process. To achieve a finished look, these cabinets must be repainted in place once re-installed, exactly as they were during the original installation.

For all other pre-owned kitchens, please expect that touch-up painting and color matching will be required. We recommend budgeting for these finishing touches to ensure a seamless result in your new space.

The Reality of Appliance Accessories & Trim Kits

Manufacturer accessories, specialized mounting hardware, and decorative trim kits shown in listing photos are not guaranteed to be included. While these components are often part of a showroom display, they are frequently fitted to that specific installation and may not be available once the unit is removed.

Additionally, internal appliance accessories—such as milk containers, water pitchers, and specialized shelving—are often not included in the sale. You should plan to source these specific manufacturer parts or trim kits to fit your new layout. If you have questions about whether a specific component is included, please reach out to us before purchasing.

The Reality of Kitchen Package Appliances

Pre-owned appliances included in kitchen sets are maintained only to the previous homeowner's standards. These products are sold based on the homeowner's representation of condition; Aurora does not independently test these units. You should budget for a professional service call upon installation, as repairs or maintenance may be necessary. Showroom displays may also require service calls to ensure they are fully operational in a home setting. All appliances in these sets are discounted significantly to accommodate these potential service requirements.

The Reality of Stand-Alone Appliances

Warranties are only included on stand-alone products explicitly labeled as "Certified." For all other stand-alone units, Aurora offers a 30-day functional guarantee should the product require service or repair.

Please note that these products are sold based on our vendor's representation of condition. Aurora does not independently test these units. We recommend all customers plan for a professional inspection and service to ensure the appliance meets their needs.

The Reality of Kitchen Configuration & Fit

All kitchen components are sold strictly "as-is" regarding their configuration and fit. Please be aware that in showroom displays, components like sinks, cooktops, and appliances may be fitted into custom-cut openings that do not follow standard residential sizing.

It is the buyer's responsibility to verify that all components—including sinks and integrated appliances—properly fit the cabinetry provided. Aurora does not guarantee that showroom configurations are compatible with standard plumbing or electrical requirements. You should expect to make modifications, cabinet adjustments, or source new components to ensure a proper fit in your specific installation.
