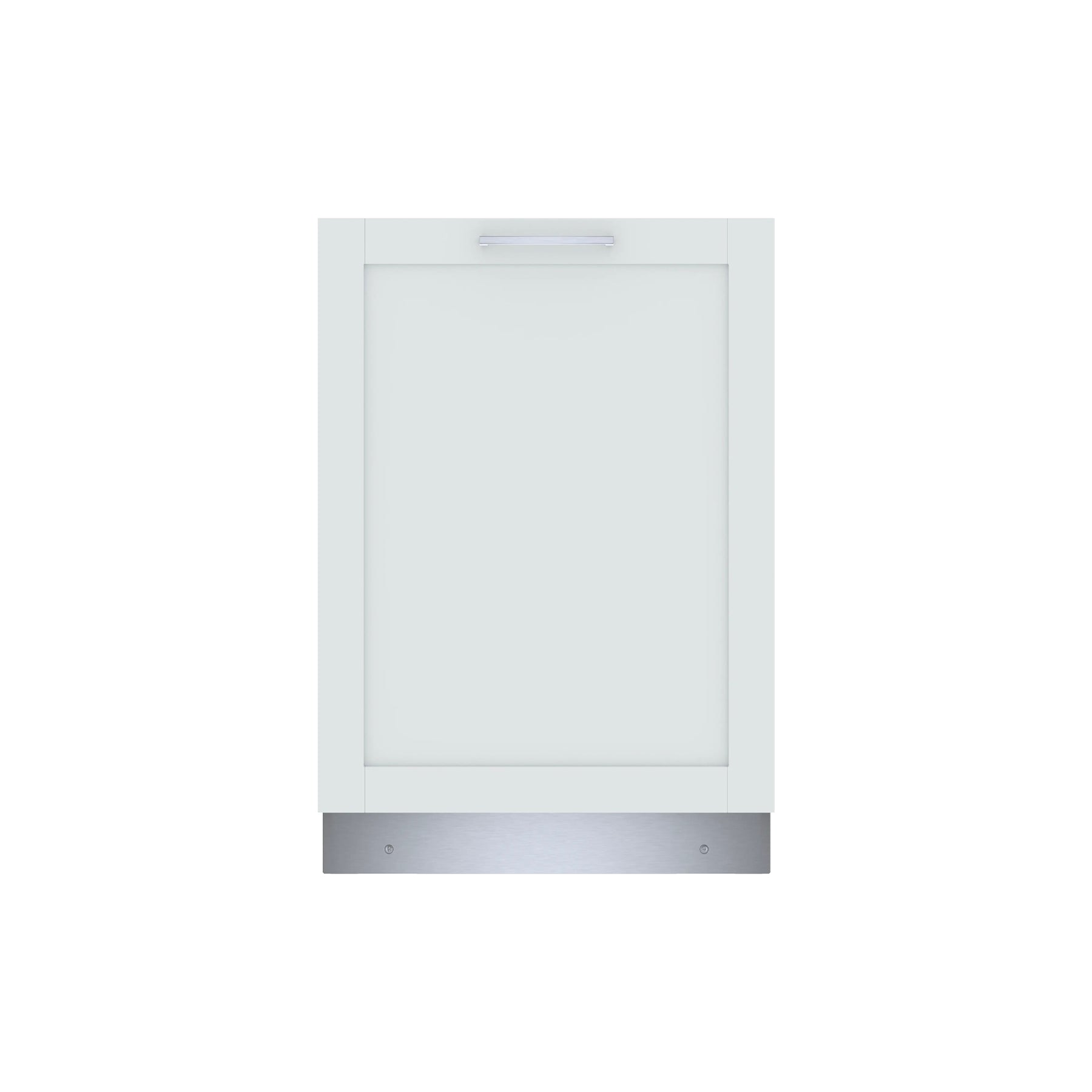

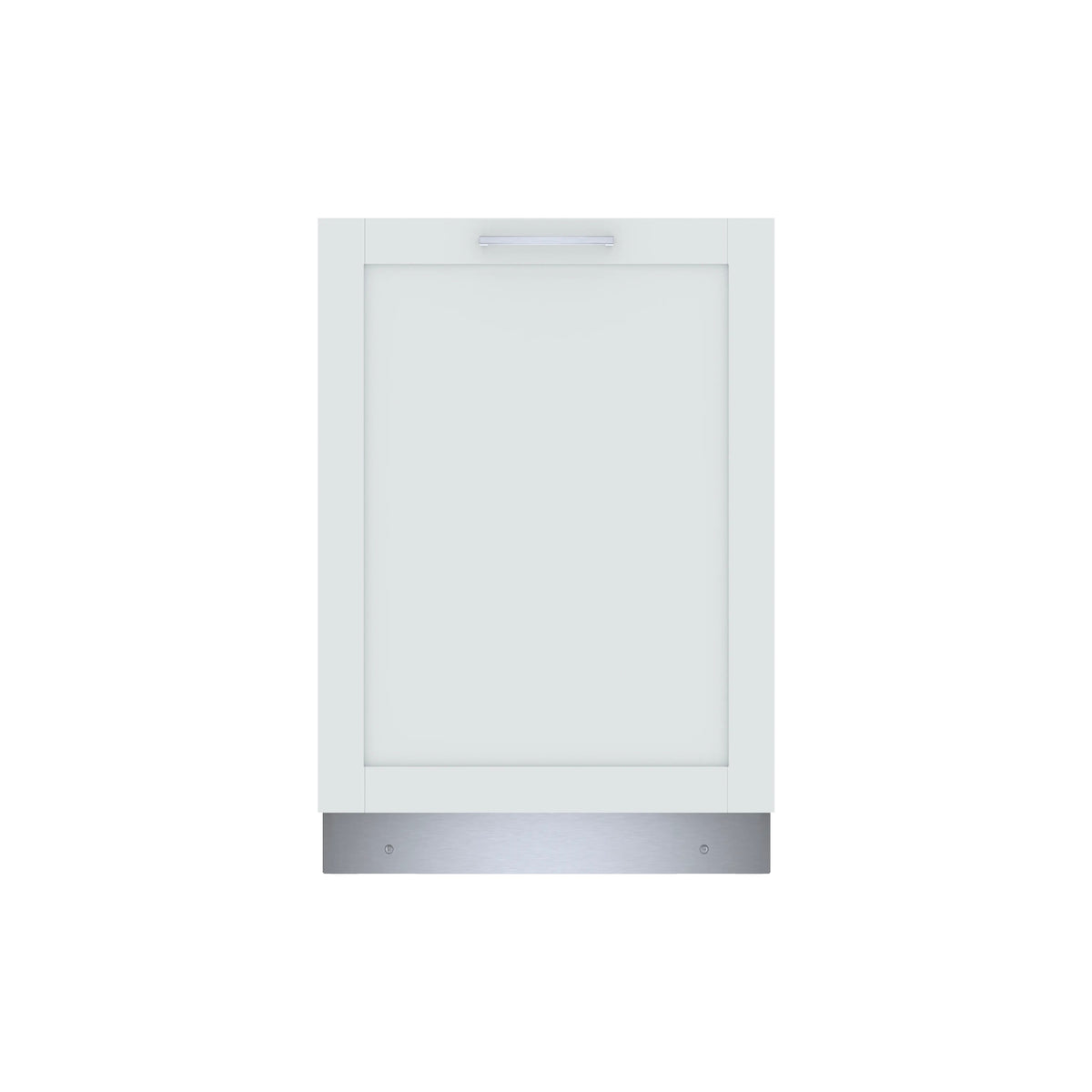

Bosch Benchmark Series SHV89PW73N 24" Panel Ready Dishwasher

Whisper-Quiet 39 dBA Operation & Bespoke Flush Cabinetry Integration: Bosch Benchmark Panel-Ready Dishwasher

Achieve absolute visual invisibility and world-class quiet clean performance within your custom millwork architecture with the elite European engineering of the Bosch Benchmark® Series 24-Inch Fully Integrated Panel-Ready Dishwasher (SHV89PW73N). Purpose-built for high-end custom home builders, luxury interior architects, and premium estate curators who demand uninterrupted kitchen lines, this flagship appliance is designed to vanish completely into your layout. Shifting entirely away from traditional stainless steel facades that disrupt the color flow of custom kitchen islands or butler's pantries, the SHV89PW73N accommodates a bespoke custom wood cabinet panel mounted directly to its front face. Operating at a near-silent 39 dBA sound output powered by a brushless EcoSilence™ dual-motor core, this luxury asset keeps your home completely peaceful while an intelligent PrecisionWash® sensor matrix tracks your load to flash-clean up to 15 full place settings simultaneously.

Master-Tier Features & Benchmark Structural Engineering

Tailored specifically for design-conscious homeowners, premium finish carpenters, and luxury kitchen organizers who require heavy-duty loading mechanics alongside advanced glass preservation systems, this panel-ready Benchmark dishwasher features:

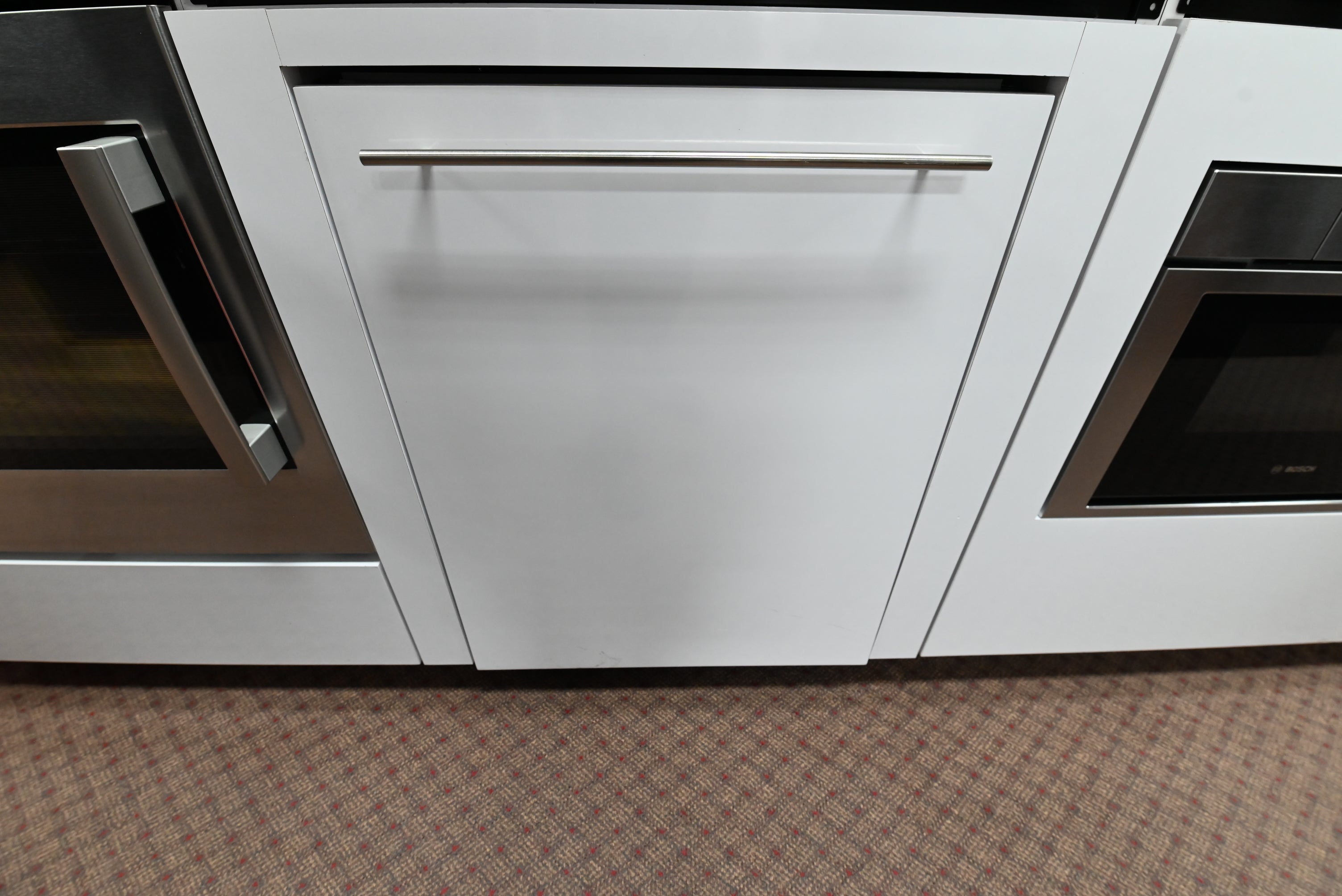

• Bespoke Fully Flush Panel Integration: Engineered to sit perfectly flush into standard 24-inch deep cabinetry runs, accepting custom-milled wood panels and integrated hardware handles to perfectly match your surrounding drawer faces.
• Near-Silent 39 dBA EcoSilence™ Drive: Utilizes two compact brushless motors held securely by rubber suspenders to minimize mechanical vibration, delivering high-velocity spray pressure at a whisper-quiet decibel level.
• PrecisionWash® Intelligent Sensors: Employs an array of high-tech optical water sensors that continually check the progress of the wash cycle, automatically optimizing water utilization and spray arm velocity for a smarter clean.

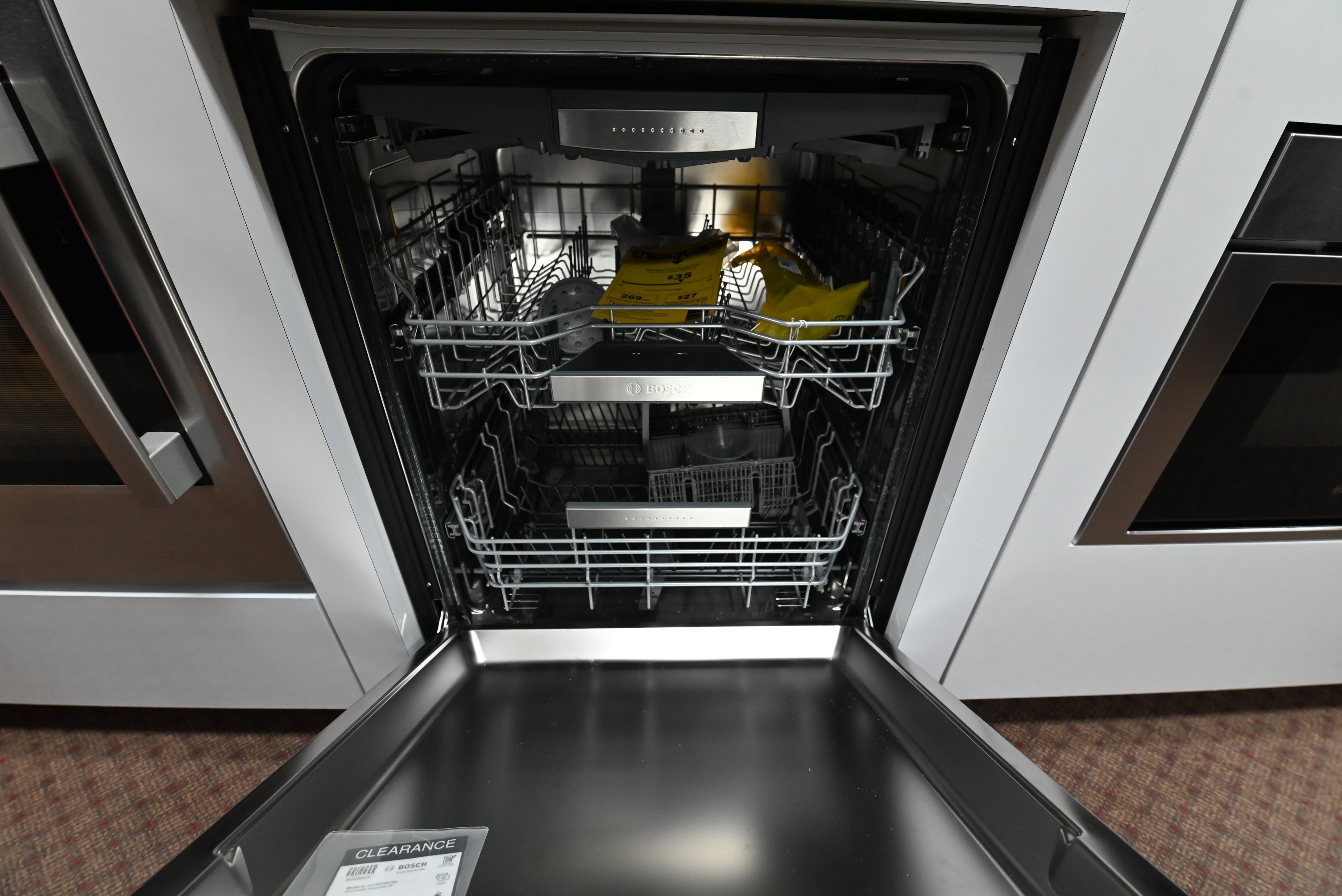

• Telescopic Smooth Glides on All 3 Levels: Outfitted with commercial-grade ball-bearing telescopic rail glides across all three rack layers, allowing even heavily loaded lower racks to slide outward smoothly without jarring your delicate crystal.
• Flexible 3rd Rack Cutlery Vault: Features adjustable drop-down side wings that expand vertical storage area by 30%, making it the ideal home for deep ramekins, large serving ladles, and silver flatware sets.
• RackMatic® Adjustable Middle Loading Upper Rack: Provides three distinct height positions and up to nine separate rack angles, allowing the host to easily lower or tilt the center basket to clear space for tall wine stems above or massive roasting pans below.
• Built-In Eco-Friendly Hard Water Softener: Houses an internal water-softening chamber that automatically extracts harsh calcium and mineral deposits from incoming utility lines, ensuring spot-free drying and brilliant clarity for fine glassware.
• 24/7 AquaStop® Plus Leak Prevention: Outfitted with a precisely engineered double-walled inlet hose and a dual electronic sensor pan that automatically shuts down operations and pumps out water if a leak is detected, providing absolute peace of mind.
• Bright White LED Premium Interior Illumination: Automatically floods the full stainless steel wash tub with clean white light whenever the door is dropped open, providing exceptional interior visibility during late-night cleanups.
• Down-Firing InfoLight® Status Ray: Projects a sharp red light beam directly onto the kitchen floor while a cycle is running, giving the host a clear visual indicator that the dishwasher is active without needing to disrupt the clean door face.

Technical Specifications

• Brand / Maker: Bosch Appliances (Benchmark® Luxury Series Portfolio)
• Collection Profile: Premium Fully Integrated Architectural Built-In Suite
• Model Category: 24" Custom Panel-Ready Undercounter Dishwasher
• Model Number: SHV89PW73N
• Operational Sound Level Rating: 39 dBA (Ultra-Quiet EcoSilence™ Dual-Motor Design)
• Total Capacity Threshold: 15 Full Place Settings
• Wash System Infrastructure: PrecisionWash® Intelligent Scanning Matrix with 5-Level Wash Cycles
• Drying Method Architecture: PureDry® Closed Energy-Efficient Condensation Drying System
• Internal Water Management: Built-In Hard Water Softening Core (Requires specialized softener salt)
• Structural Tub Liner Composition: 100% High-Grade Heavy Stainless Steel Tub Frame
• Rack Organization Matrix: 3 Levels (Flexible 3rd Rack Cutlery Tray, RackMatic® Middle Rack, Lower Pan Rack)
• Slide Track Engineering: Premium Smooth-Glide Telescopic Glides Equipped on All 3 Rack Tiers
• Selectable Cycle Menu Paths: 7 Cycles (Pots & Pans, Auto, Hand Wash, Normal, 1 Hour, Quick, Rinse)
• Performance Enhancing Options: 7 Options (Delicate, Extra Dry, Extra Scrub, Half Load, Sanitation, Speed Perfect, Delay Start)

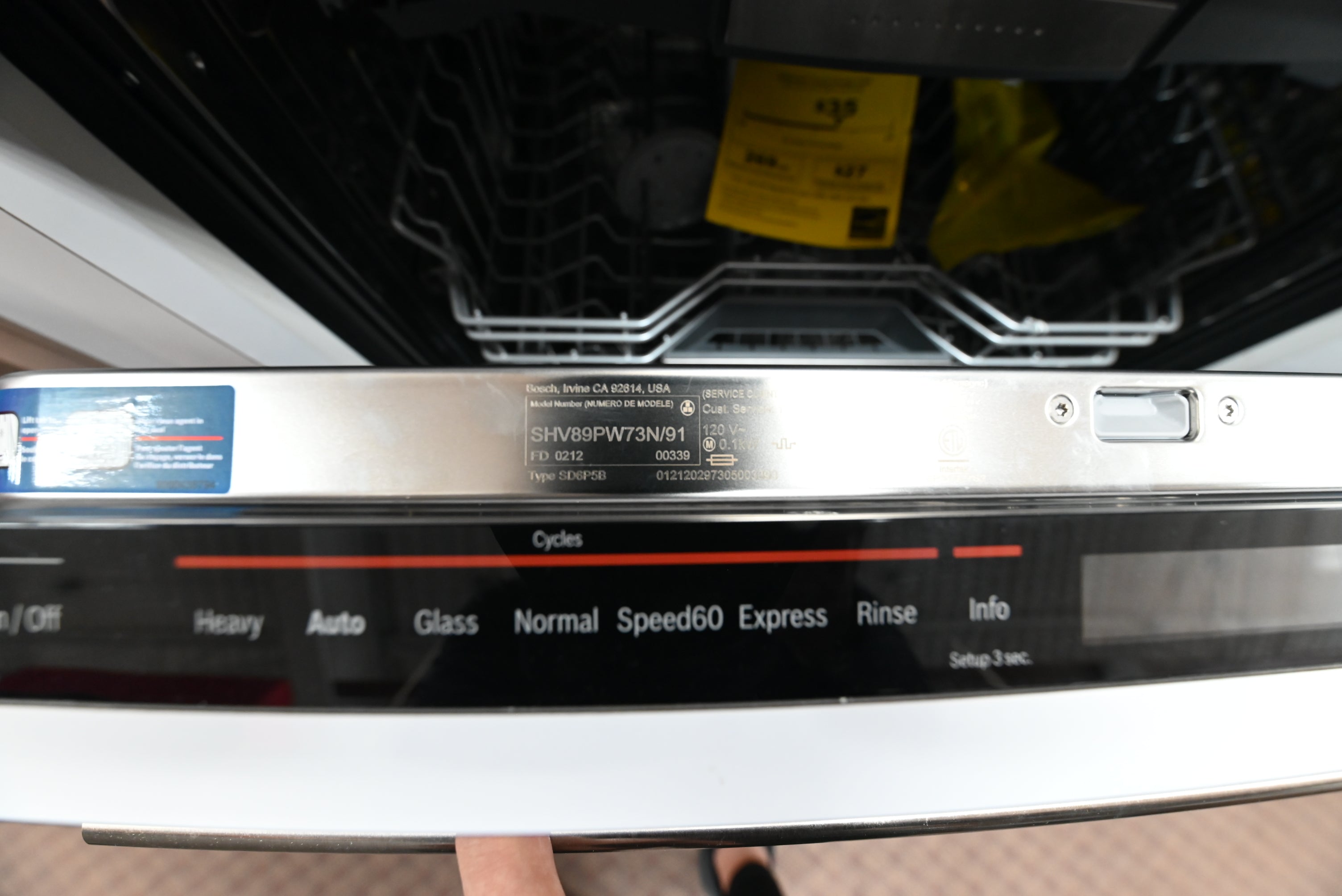

• Status Monitoring Interface: Top-Edge Hidden TFT Touch Control Panel with Down-Firing Red InfoLight® Floor Projection
• Safety Leak Protection Infrastructure: 24/7 AquaStop® Plus Closed-Circuit Flood Preventer Valve
• Overall Appliance Width: 23 9/16 Inches (Engineered for standard 24" custom panel openings)
• Overall Appliance Depth: 21 5/8 Inches (Sits cleanly flush behind standard 3/4" cabinet drawer panel profiles)
• Overall Appliance Height: 34 1/16 Inches (Adjustable leveling feet allow height extension for standard counter lines)
• Required Cabinet Cutout Enclosure Size: 34 1/16" H x 24" W x 24" D
• Cabinet Door Panel Weight Acceptance: Supports custom wood fronts weighing between 6.6 lbs (3 kg) up to 22 lbs (10 kg) Max
• Utility Demands Required: 120 VAC | 60Hz | 12-Amp Max Power Connected Load (1,440W Concealed Heating Core)
• Water Consumption Efficiency: Ultra-Low 2.9 Gallons Per Normal Wash Cycle Running

The Bosch Benchmark Series 24-Inch Fully Integrated Panel-Ready Built-In Dishwasher is the absolute definitive choice for the modern kitchen architect, premium custom cabinet builder, or luxury home curator who demands a completely invisible flush integration, a whisper-quiet 39 dBA sound footprint, smooth ball-bearing telescopic glides on all three rack tiers, and built-in water softener utility. Its premier combination of a flexible 3rd rack cutlery tray, an intelligent PrecisionWash® sensor matrix, and a down-firing red InfoLight® status beam ensures your custom kitchen panel layout, delicate crystal routines, and upscale hosting cleanups remain effortlessly organized and flawlessly executed.

The Reality of Trim & Molding

The molding and trim shown in our listing photos are rarely fully reclaimable. Because salvaging is a delicate process, you should expect to receive less than what is pictured.

Most retrofits will require you to source additional matching material to complete your project. Additionally, salvaged trim is not "plug-and-play"—plan on repairing, patching, and repainting these pieces to get them installation-ready. We'd rather you prepare for a project than be surprised by a shortage on delivery day.

Most wall finishes or paneling surrounding the cabinetry is not included. If you are interested or expecting a certain example ask your sales associate.

The Reality of Countertops

Countertops shown in our listings are provided as a complimentary inclusion only and are not guaranteed as part of the sale. Due to the high risk of cracking or breaking during disassembly and transport, countertops may not be available or usable at the time of delivery.

Please note that no claims, credits, or refunds will be issued if countertops are damaged or unavailable. Additionally, backsplash tile, wall stone, and related materials are never included in the purchase price. We strongly recommend planning your project with new countertops in mind; if the originals arrive intact, consider it a win.

The Reality of Cabinet Cut-outs

Please be aware that both showroom and pre-owned cabinetry will have pre-existing cut-outs. These openings for electrical, plumbing, and gas connections are commonly found on the backs, sides, and toe kicks of the units.

These cut-outs are a standard part of any previously installed kitchen and should be expected. Because every home's utility layout is different, you should plan for additional modifications or patching to accommodate your specific plumbing and electrical needs during re-installation.

The Reality of Painted Cabinetry

If a kitchen was custom-painted on-site, you must plan for a full repaint. Because these kitchens were painted over the joints after installation, the paint film is broken during the disassembly process. To achieve a finished look, these cabinets must be repainted in place once re-installed, exactly as they were during the original installation.

For all other pre-owned kitchens, please expect that touch-up painting and color matching will be required. We recommend budgeting for these finishing touches to ensure a seamless result in your new space.

The Reality of Appliance Accessories & Trim Kits

Manufacturer accessories, specialized mounting hardware, and decorative trim kits shown in listing photos are not guaranteed to be included. While these components are often part of a showroom display, they are frequently fitted to that specific installation and may not be available once the unit is removed.

Additionally, internal appliance accessories—such as milk containers, water pitchers, and specialized shelving—are often not included in the sale. You should plan to source these specific manufacturer parts or trim kits to fit your new layout. If you have questions about whether a specific component is included, please reach out to us before purchasing.

The Reality of Kitchen Package Appliances

Pre-owned appliances included in kitchen sets are maintained only to the previous homeowner's standards. These products are sold based on the homeowner's representation of condition; Aurora does not independently test these units. You should budget for a professional service call upon installation, as repairs or maintenance may be necessary. Showroom displays may also require service calls to ensure they are fully operational in a home setting. All appliances in these sets are discounted significantly to accommodate these potential service requirements.

The Reality of Stand-Alone Appliances

Warranties are only included on stand-alone products explicitly labeled as "Certified." For all other stand-alone units, Aurora offers a 30-day functional guarantee should the product require service or repair.

Please note that these products are sold based on our vendor's representation of condition. Aurora does not independently test these units. We recommend all customers plan for a professional inspection and service to ensure the appliance meets their needs.

The Reality of Kitchen Configuration & Fit

All kitchen components are sold strictly "as-is" regarding their configuration and fit. Please be aware that in showroom displays, components like sinks, cooktops, and appliances may be fitted into custom-cut openings that do not follow standard residential sizing.

It is the buyer's responsibility to verify that all components—including sinks and integrated appliances—properly fit the cabinetry provided. Aurora does not guarantee that showroom configurations are compatible with standard plumbing or electrical requirements. You should expect to make modifications, cabinet adjustments, or source new components to ensure a proper fit in your specific installation.
